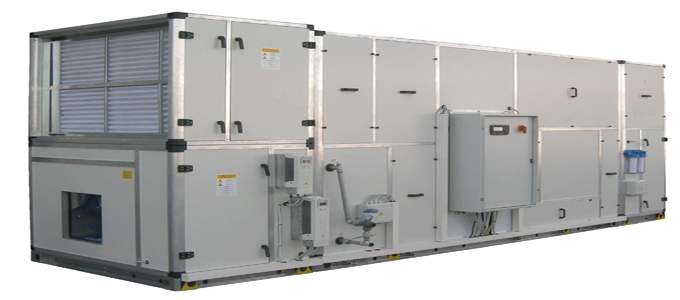

Air Handling Unit



Some specific details of the company include:-

  • Offered in single skin or double skin Construction.
  • Thermal break and extruded aluminium hollow profiles are provided as an option.
  • For proper drainage of condensates the pans are fabricated using G.I steel sheets and aluminium.
  • Available in RAL colors the AHU's are of different standards.
  • For better heat transfer the coils are fabricated using imported quality copper tubes.
  • Galvanized steels of superior quality with thickness 25 millimeter or 43 millimeters are offered that offers double skinned panels that is provided with HFC and CFC free PUF's of 40 kg/Cum density.
  • For easy handling these are provided with holes with thickness 1.4 millimeters.
  • KRUGER or NICOTRA OR EQUIVALENT MAKE centrifugal fansthat offers backward and forward curves. and are certified to AMCA / Axial Fans are used in case of Direct Ammonia.
  • Coil section are provided with choice of chilled water, direct expansion, hot water and steam coils with 2, 4, 6 & 8 rows deep. Imported copper tube is used in fabrication of coil for better heat transfer.
  • Multi slope S.S-304, Aluminium or G.I. drain pan ensures proper drainage of condensate.
  • Air mixing chambers are available in these units for mixing returned air with fresh air.
  • Induction motor with TEFC Squirrel cage offers AC supply of 415+10% volts, 50/60 cycle, 3 phase/ 1 phase.
  • Motor make: ABB / SIEMENS/ KIRLOSKAR / Crompton
  • Bag filters are also provided
  • As an option one can select any thing along with these products in accordance to their specific applications that includes Pan type humidifier, HRW (heat Recovery Wheel), Finned strip heater, spray type humidifier and VFD (Variable frequency drive).
  • Surge Drums are also provided with gravity feed Ammonia system.
