Ripening Chambers

Ethylene-controlled ripening chambers for uniform, natural fruit ripening with precise temperature and humidity management.

Ripening Chambers

SHAKTI INDUSTRIES | Concept to Commissioning

Precision Fruit Ripening Technology

SHAKTI INDUSTRIES provides state-of-the-art Ripening Chamber Refrigeration Units specially engineered to maintain precise environmental conditions for uniform, natural fruit ripening. Our chambers deliver consistent quality batches every time.

Each chamber is fine-tuned to optimum levels of humidity, temperature, ventilation, and ethylene gas emission, ensuring safe and commercially efficient ripening of bananas, mangoes, avocados, and other climacteric fruits.

Applications: Banana ripening, mango ripening, avocado ripening, tomato ripening, and other climacteric fruits across supermarket chains, exporters, and wholesale markets.

Controlled Atmosphere Ripening

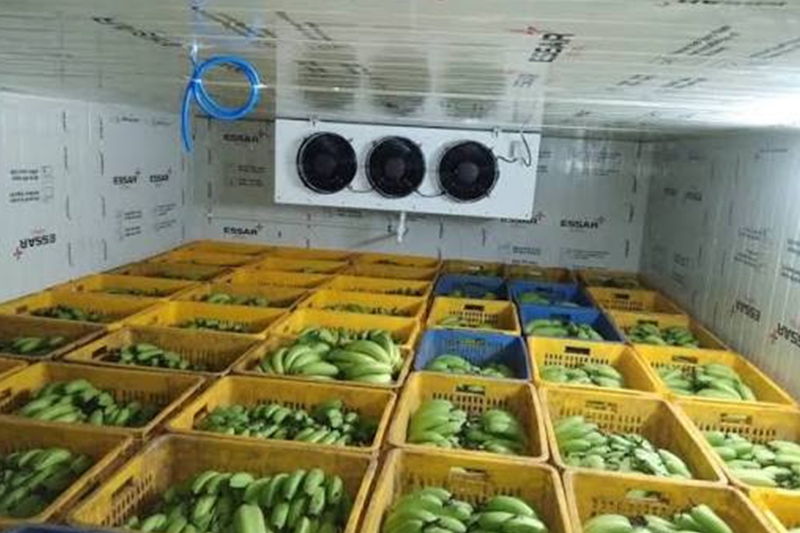

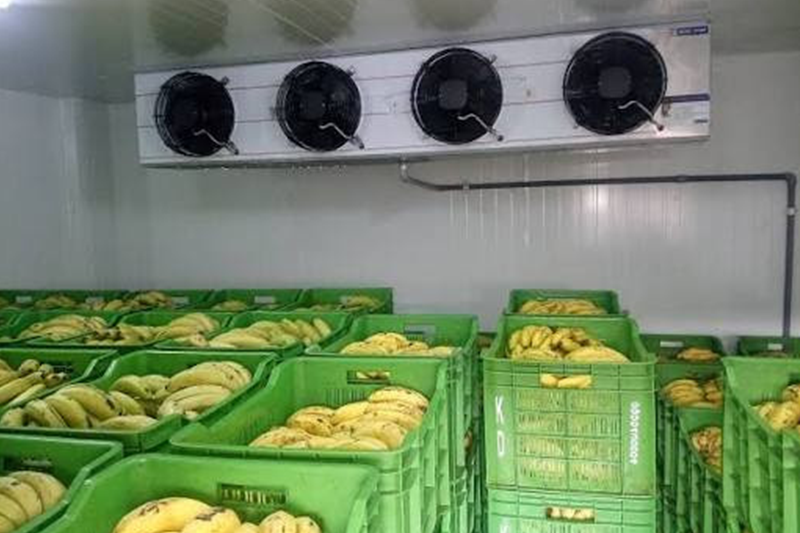

Our controlled atmosphere ripening chambers provide a precise 5-day ripening period. These chambers are specially constructed as airtight rooms with purpose-built evaporator coils for maintaining controlled temperature and humidity throughout the ripening cycle.

Airtight insulated chamber construction
Special low-velocity evaporator coils
Ethylene Gas Generator system
Automated gas dosing & monitoring
Humidity control & forced air circulation
Stacking system option for larger chambers

Why Choose SHAKTI Ripening Chambers?

Uniform colour & texture across entire batch
5-day programmable ripening cycle
Ethylene gas generator with auto-dosing
PLC-based climate monitoring & logging
Energy-efficient refrigeration system
Scalable capacity from 2 MT to 100+ MT

Our chambers eliminate inconsistency in manual ripening and reduce post-harvest losses significantly, delivering shelf-ready produce on schedule.

Technical Specifications

Capacity Range2 MT – 120 MT per chamber
Temperature Range+13°C to +18°C (ripening phase)
Humidity Control90% – 95% RH
Ethylene Concentration100 – 150 ppm
Ripening Cycle4 – 7 days (programmable)
InsulationPUF panel 80mm–120mm
RefrigerantR-404A / R-449A
Control SystemPLC with touchscreen HMI
Power Supply3-Phase, 415V, 50Hz
Chamber ConstructionGI / SS interior finish

Environmental Control Parameters

Monitoring Functions
  • Temperature Monitoring
  • Humidity Monitoring
  • Ethylene Gas Level
  • CO2 Concentration
  • Air Circulation Rate
Control Functions
  • Temperature Setpoint Control
  • Humidity Setting
  • Ethylene Dosing Schedule
  • Ventilation Cycles
  • Ripening Stage Automation
